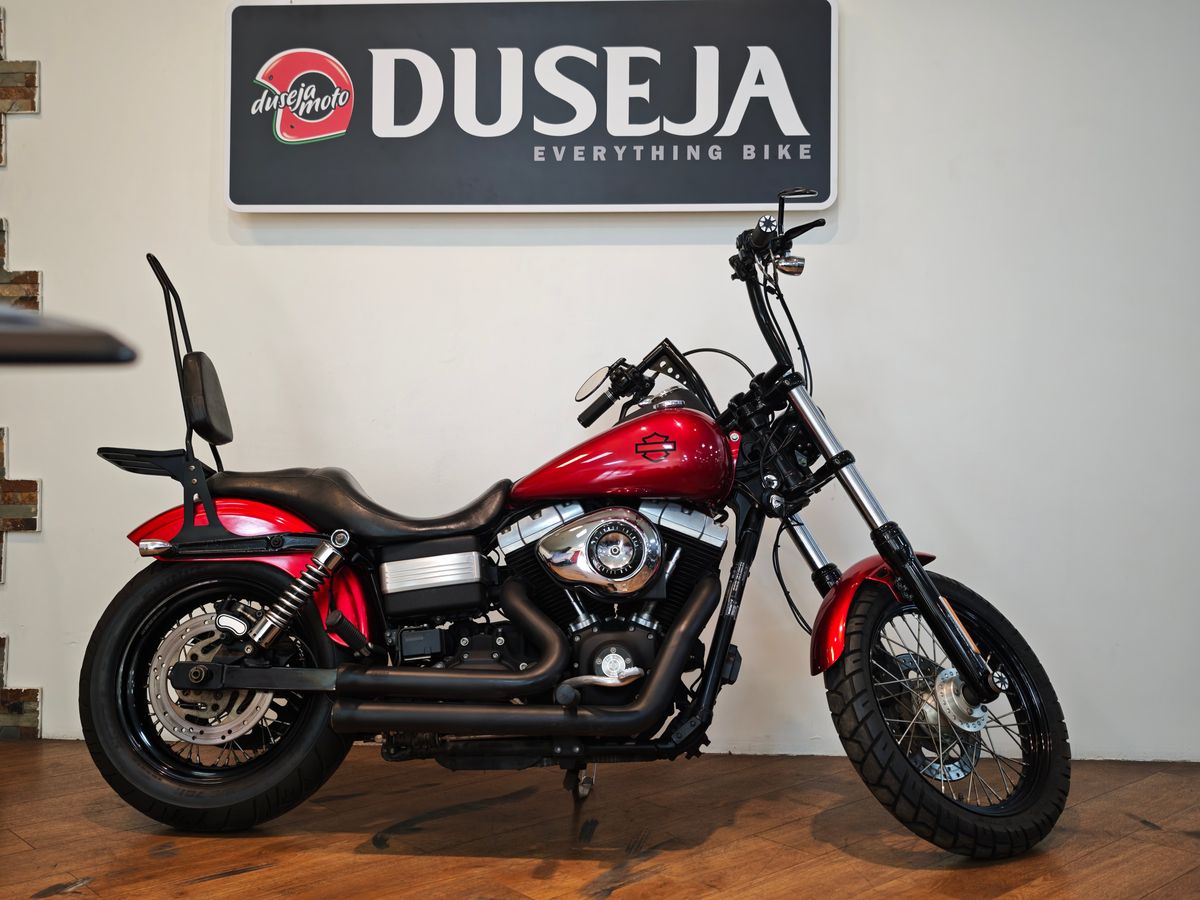

2012 Harley-Davidson Street Bob

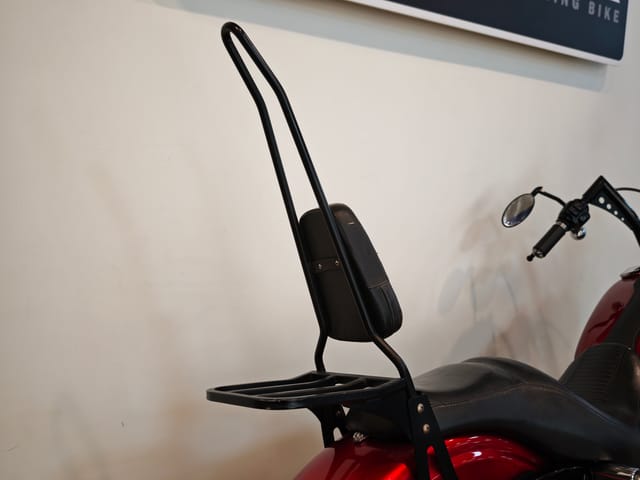

HARLEY-DAVIDSON DYNA STREET BOB FXDB Make Model: Harley-Davidson Dyna Street Bob FXDB Year: 2012 Category: Cruiser / Bobber Model Code: FXDB Colour : Ember Red Sunglo Km: 15390 Additional Accessories: Cobra Speedster 909 exhaust system, Aftermarket sissy bar with pillion cushion, Side mount number plate , Aftermarket Ape Hanger handlebars, fork protectors . ENGINE Engine Type: Four-stroke, 45° V-Twin, Twin Cam 96 Cooling System: Air cooled Capacity: 1,584 cc / 96 cu-in Bore x Stroke: 95.3 x 111.3 mm Compression Ratio: 9.2:1 Valve Train: Pushrod-operated overhead valves with hydraulic self-adjusting lifters, 2 valves per cylinder Fuel System: Electronic Sequential Port Fuel Injection - ESPFI Lubrication: Pressurised dry-sump Ignition: Electronic Starting: Electric Maximum Power: Approx. 73 hp / 54 kW @ 5,300 rpm* Maximum Torque: 125 Nm / 92 lb-ft @ 3,000 rpm *Harley-Davidson primarily published torque rather than an official peak horsepower figure for this model; the horsepower figure is a commonly quoted period specification. TRANSMISSION Transmission: 6-Speed Cruise Drive Clutch: Wet, multi-plate Primary Drive: Chain, 34/46 ratio Final Drive: Belt, 32/66 ratio FRAME & CHASSIS Frame: Mild-steel tubular frame with rectangular-section backbone, stamped, cast and forged junctions and MIG-welded construction Swingarm: Mild-steel rectangular-section swingarm Rake: 29° Trail: 119 mm / 4.7 in Ground Clearance: 125 mm / 4.9 in FRONT SUSPENSION Type: 49 mm telescopic fork with polished aluminium triple clamp and dual-rate springs Front Wheel Travel: 127 mm / 5.0 in REAR SUSPENSION Type: Twin exposed coil-over shock absorbers Adjustment: Spring preload adjustable Rear Wheel Travel: Approx. 79 mm / 3.1 in FRONT BRAKE Disc: Single 300 mm floating disc Caliper: 4-piston fixed caliper ABS: Optional REAR BRAKE Disc: Single 292 mm disc Caliper: 2-piston torque-free floating caliper ABS: Optional WHEELS Wheel Type: Black steel laced / wire-spoke wheels Front Wheel: 19 x 2.5 in Rear Wheel: 17 x 4.5 in TYRES Front Tyre: Michelin Scorcher 31 - 100/90B19 57H Rear Tyre: Michelin Scorcher 31 - 160/70B17 73V Recommended Cold Tyre Pressure Front: 30 psi / 206 kPa Rear: 40 psi / 276 kPa DIMENSIONS Overall Length: 2,357 mm / 92.8 in Overall Width: 953 mm / 37.5 in Overall Height: 1,280 mm / 50.4 in Wheelbase: 1,631 mm / 64.2 in Ground Clearance: 125 mm / 4.9 in Seat Height - Unladen: 678 mm / 26.7 in Seat Height - Laden: 648 mm / 25.5 in WEIGHT Dry / As-Shipped Weight: Approx. 289 kg / 637 lb Running Order Weight: Approx. 304 kg / 670 lb Gross Vehicle Weight Rating: 492.2 kg / 1,085 lb Maximum Additional Load: Approx. 188 kg / 415 lb CAPACITIES Fuel Tank: 17.8 litres / 4.7 US gal Engine Oil with Filter: 2.8 litres / 3.0 US qt Transmission Oil: Approx. 0.95 litre / 1.0 US qt Primary Chaincase: Approx. 0.95 litre / 1.0 US qt FUEL & PERFORMANCE Fuel Type: Unleaded petrol Fuel Injection: ESPFI Combined Fuel Consumption: Approx. 5.5 L/100 km / 43 US mpg Maximum Torque: 125 Nm @ 3,000 rpm The Twin Cam 96 engine is tuned around strong low- and mid-range torque rather than high-rpm peak horsepower. ELECTRICAL SYSTEM System Voltage: 12 V Battery: Sealed, maintenance-free Battery Capacity: 19 Ah Cold Cranking Amps: Approx. 270 CCA Charging System: Three-phase, 40 amp Starter: 1.2 kW electric starter Headlight: Halogen Low Beam: 55 W High Beam: 60 W INSTRUMENTATION Tank-mounted electronic instrumentation incorporating: Digital speedometer Odometer Dual trip meter Clock RPM / gear display Fuel level indication Low-fuel warning Low-oil-pressure warning Engine diagnostic indicator Turn-signal indicators High-beam indicator Neutral indicator 6th-gear indicator RIDER EQUIPMENT & FEATURES Handlebar: Mini ape-hanger style Foot Controls: Mid-mounted Seat: Low-profile solo seat STREET BOB DESIGN FEATURES The 2012 Street Bob follows Harley-Davidson's stripped-back factory bobber theme, combining traditional Dyna architecture with minimalist styling. SUMMARY Engine: 1,584 cc Twin Cam 96 V-Twin Cooling: Air Cooled Power: Approx. 73 hp / 54 kW Torque: 125 Nm @ 3,000 rpm Gearbox: 6-Speed Cruise Drive Final Drive: Belt Front Tyre: 100/90B19 57H Rear Tyre: 160/70B17 73V Front Brake: 300 mm Disc, 4-Piston Rear Brake: 292 mm Disc, 2-Piston Seat Height: 648 mm Laden Running Weight: Approx. 304 kg Fuel Capacity: 17.8 L Wheelbase: 1,631 mm
